Modern Microsoft 365 environments demand precision, least privilege, and auditability. Yet many organizations still rely on broad Graph application permissions like Mail.Read or Sites.Read.All, unintentionally granting apps access to every mailbox or SharePoint site. Some apps legitimately require tenant‑wide access (e.g., threat detection tools), while others must be restricted to specific mailboxes or specific SharePoint sites.

This post walks through a fully automated, end‑to‑end PowerShell implementation of granular RBAC for:

Exchange Online using attribute‑based management scopes
SharePoint Online using Sites.Selected
Entra ID for app registration, service principal creation, and permission assignments

All access is restricted to a Mail‑Enabled Security Group (MESG) whose membership is synchronized into a mailbox attribute. This creates a clean, scalable, and least‑privilege RBAC model.

Source codes and test scripts related to this post are shared at GitHub for your convenience.

🚫 Critical Warning: Do NOT Assign Mail.Read or Sites.Read.All (Application Permissions)

This is the most important security takeaway.

Why you must NOT assign Mail.Read (Application)

If you assign Mail.Read (Application) in the Entra ID app registration:

The app receives tenant‑wide mailbox access from Entra ID
Exchange Online RBAC cannot restrict or scope it
Your attribute‑based scope becomes irrelevant or ignored

This is explicitly demonstrated in my earlier testing: assigning Mail.Read at the app registration bypasses EXO RBAC entirely.

Why you must NOT assign Sites.Read.All (Application)

Similarly:

Sites.Read.All (Application) grants tenant‑wide SharePoint access
SharePoint will ignore Sites.Selected scoping
The app can read every site and every file

This is a major security risk and defeats the purpose of granular access.

Correct approach

Do NOT assign Mail.Read (Application)
Do NOT assign Sites.Read.All (Application)
Use Exchange Online RBAC for mailbox scoping
Use Sites.Selected (Application) for SharePoint scoping and assign RBAC at the SharePoint site(s).

This is exactly how the demo script is structured.

⭐ What You Will Achieve

By the end of this guide, you will have:

A dedicated Entra ID application + service principal
Delegated and application Graph permissions
A Mail‑Enabled Security Group (MESG)
Automatic MESG → mailbox attribute synchronization
An Exchange Online attribute‑based management scope
A scoped Application Mail.Read role assignment
A SharePoint Sites.Selected permission granting site‑level access

All tied together with a single PowerShell script.

1. Configuration Variables

These values define your environment. Update them as needed. Credentials or secrets are removed from this post to maintain integrity of the demo tenant. This tenant does NOT contain any personal or sensitive data. I could have removed some of the config settings like tenant id, user id, etc. but I kept them for educational purpose.

$TenantId          = "c33386cf-6e11-484c-a983-b49975ce571a"
$AppDisplayName    = "M365-RBAC-DEMO"
$MailboxAttribute  = "CustomAttribute1"
$MailboxAttrValue  = $AppDisplayName
$MgmtScopeName     = "$AppDisplayName-Attribute-Scope"
$RoleAssignmentName= "$AppDisplayName-Role-Assignment"
$MESG              = "$AppDisplayName-MESG"
$MESGAlias         = "M365RBACDemoMESG"
$member1           = "Paul.Smith@aspnet4you2.onmicrosoft.com"
$member2           = "Bob.Smith@aspnet4you2.onmicrosoft.com"
$spsite            = "https://graph.microsoft.com/v1.0/sites/aspnet4you2.sharepoint.com:/sites/Graph-Demo"

2. Connect to Microsoft Graph

Connect-MgGraph -TenantId $TenantId -Scopes @(
    "Application.ReadWrite.All",
    "Directory.ReadWrite.All",
    "AppRoleAssignment.ReadWrite.All",
    "Sites.FullControl.All"
)

3. Create the Entra ID App + Service Principal

$app = New-MgApplication -DisplayName $AppDisplayName -SignInAudience "AzureADMyOrg"
$sp  = New-MgServicePrincipal -AppId $app.AppId

If you prefer to use an existing app, uncomment the alternative section in the script.

4. Assign Graph Application Permissions

We intentionally avoid Mail.Read and Sites.Read.All because they grant tenant‑wide access.

Instead, we assign only:

Sites.Selected (app permission)

$graphSp = Get-MgServicePrincipal -Filter "appId eq '00000003-0000-0000-c000-000000000000'"

$sitesSelected = $graphSp.AppRoles | Where-Object {
    $_.Value -eq "Sites.Selected" -and $_.AllowedMemberTypes -contains "Application"
}

New-MgServicePrincipalAppRoleAssignment -ServicePrincipalId $sp.Id `
    -PrincipalId $sp.Id `
    -ResourceId $graphSp.Id `
    -AppRoleId $sitesSelected.Id

5. Assign Delegated Permissions

These are for interactive user flows (not app‑only).

$mailReadDelegated = $graphSp.Oauth2PermissionScopes | Where-Object {
    $_.Value -eq "Mail.Read" -and $_.Type -eq "User"
}

$sitesReadWriteAllDelegated = $graphSp.Oauth2PermissionScopes | Where-Object {
    $_.Value -eq "Sites.ReadWrite.All" -and $_.Type -eq "User"
}

Update-MgApplication -ApplicationId $app.Id -RequiredResourceAccess @(
    @{
        ResourceAppId = "00000003-0000-0000-c000-000000000000"
        ResourceAccess = @(
            @{ Id = $mailReadDelegated.Id; Type = "Scope" }
            @{ Id = $sitesReadWriteAllDelegated.Id; Type = "Scope" }
        )
    }
)

Admin consent is granted programmatically:

New-MgOauth2PermissionGrant -BodyParameter @{
    clientId     = $sp.Id
    consentType  = "AllPrincipals"
    principalId  = $null
    resourceId   = $graphSp.Id
    scope        = "Mail.Read Sites.ReadWrite.All"
}

6. Connect to Exchange Online

Connect-ExchangeOnline -DisableWAM

7. Create the Mail‑Enabled Security Group (MESG)

New-DistributionGroup `
    -Name $MESG `
    -DisplayName $MESG `
    -Alias $MESGAlias `
    -Type Security

$newmembers = @($member1, $member2)

foreach ($m in $newmembers) {
    Add-DistributionGroupMember -Identity $MESG -Member $m
}

8. Sync MESG Membership → Mailbox Attribute

This is the key to attribute‑based scoping.

$members = Get-DistributionGroupMember $MESG

foreach ($m in $members) {
    if ($m.RecipientType -eq "UserMailbox") {
        $setParams = @{ Identity = $m.PrimarySmtpAddress }
        $setParams[$MailboxAttribute] = $MailboxAttrValue
        Set-Mailbox @setParams
    }
}

9. Create the Attribute‑Based Management Scope

$scopeFilter = "$MailboxAttribute -eq '$MailboxAttrValue'"

$existingScope = Get-ManagementScope -ErrorAction SilentlyContinue |
    Where-Object {$_.Name -eq $MgmtScopeName}

if (-not $existingScope) {
    $mgmtScope = New-ManagementScope -Name $MgmtScopeName -RecipientRestrictionFilter $scopeFilter
} else {
    $mgmtScope = $existingScope
}

10. Create the Exchange Online Service Principal Pointer

$exoSp = New-ServicePrincipal -AppId $app.AppId -ObjectId $sp.Id -DisplayName $AppDisplayName -ErrorAction SilentlyContinue

if (-not $exoSp) {
    $exoSp = Get-ServicePrincipal | Where-Object { $_.AppId -eq $app.AppId }
}

11. Assign the Application Mail.Read Role (Scoped)

$roleName = "Application Mail.Read"

$existingAssignment = Get-ManagementRoleAssignment -ErrorAction SilentlyContinue |
    Where-Object {$_.Name -eq $RoleAssignmentName}

if (-not $existingAssignment) {
    New-ManagementRoleAssignment `
        -Name $RoleAssignmentName `
        -Role $roleName `
        -App $exoSp.Id `
        -CustomResourceScope $mgmtScope.Identity
}

This ensures the app can read only mailboxes whose attribute matches the MESG membership.

12. Grant SharePoint Site Access (Sites.Selected)

$site = Invoke-MgGraphRequest -Method GET -Uri $spsite
$siteId = $site.id

$body = @{
    roles = @("fullcontrol")
    grantedToIdentities = @(
        @{
            application = @{
                id = $app.AppId
                displayName = $AppDisplayName
            }
        }
    )
}

Invoke-MgGraphRequest -Method POST `
    -Uri "https://graph.microsoft.com/v1.0/sites/$siteId/permissions" `
    -Body ($body | ConvertTo-Json -Depth 5)

Final Output

Your service principal is now:

Scoped to specific mailboxes via attribute‑based RBAC
Scoped to a specific SharePoint site via Sites.Selected
Configured for least‑privilege access across Microsoft 365

This is a clean, scalable, and secure RBAC model suitable for production environments.

Testing with Postman

It would be incomplete unless you can test your configurations and setup! To facilitate the testing, I used Postman to –

Acquire Access Token from Entra ID using Client Credential flow. Save the access token in environment variable so we can use it to make graph calls.
As per setup, the app can access mailbox of Paul and Bob, but it can’t access Alex or other user’s mailboxes.
App can access Graph-Demo site, but it can’t access any other sites.
Source codes can be found at GitHub.

🧪 Test Case 1 — Get Access Token (Client Credential Flow)

Environment variables include:

"tenant_id": "c33386cf-6e11-484c-a983-b49975ce571a"
"client_id": "e22adff0-3b54-4621-af94-d052582380b3"

Use the request:

Collection → ClientCredential → GetToken Client Credential

This sends:

grant_type=client_credentials client_id={{client_id}} client_secret={{client_secret}} scope={{scope}}

The test script stores the token:

pm.environment.set(“access_token”, JSON.parse(responseBody).access_token);

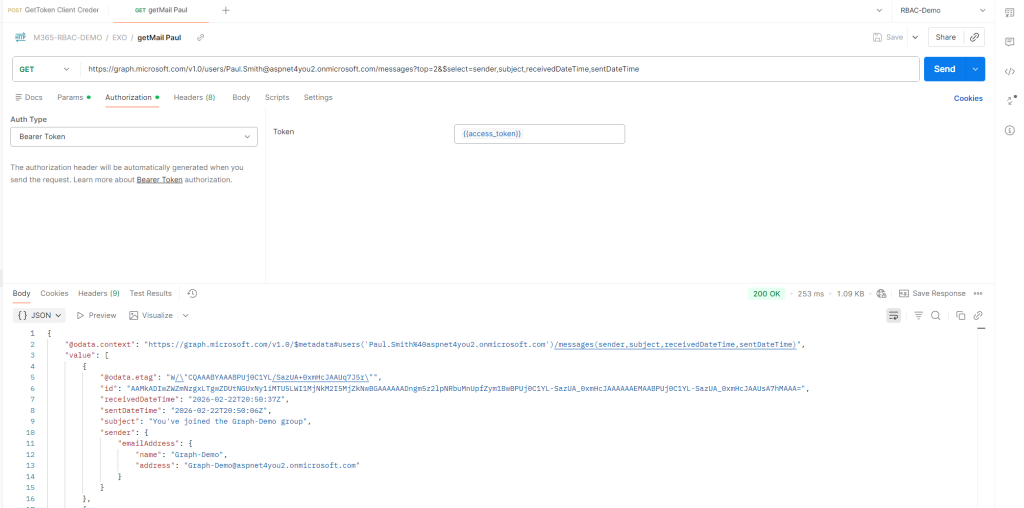

🧪 Test Case 2 — Read Mail from Allowed Mailboxes (Paul & Bob)

Use:

EXO → getMail Paul
EXO → getMail Bob

Both requests use:

Authorization: Bearer {{access_token}}

Expected result:

Paul → ✔️ Success
Bob → ✔️ Success

This confirms the attribute‑based scope is working.

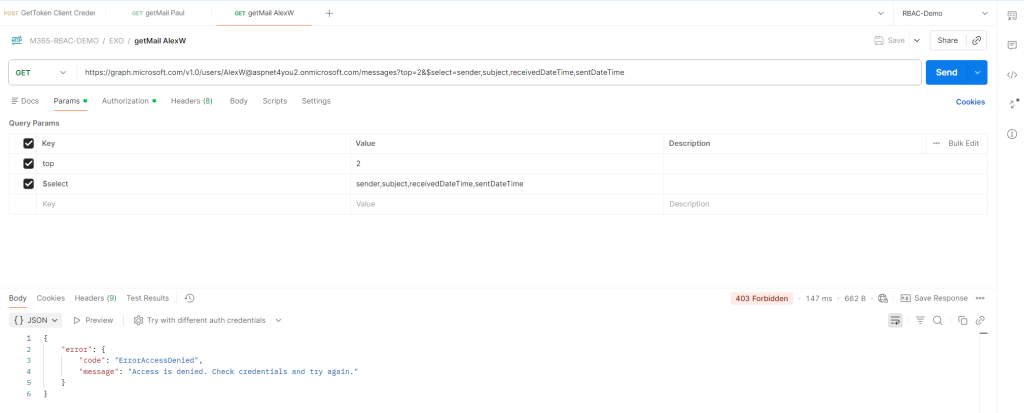

🧪 Test Case 3 — Attempt to Read Mail from Unauthorized Mailboxes

Use:

EXO → getMail Adele
EXO → getMail AlexW

Expected result:

Adele → ❌ Access Denied
AlexW → ❌ Access Denied

This validates that the app cannot read tenant‑wide mailboxes.

🧪 Test Case 4 — SharePoint Access Using Sites.Selected

1. Get Site ID

Use:

SPO → Get SiteId

The test script extracts:

var site_id = responseBody.id; pm.environment.set(“site_id”, site_id);

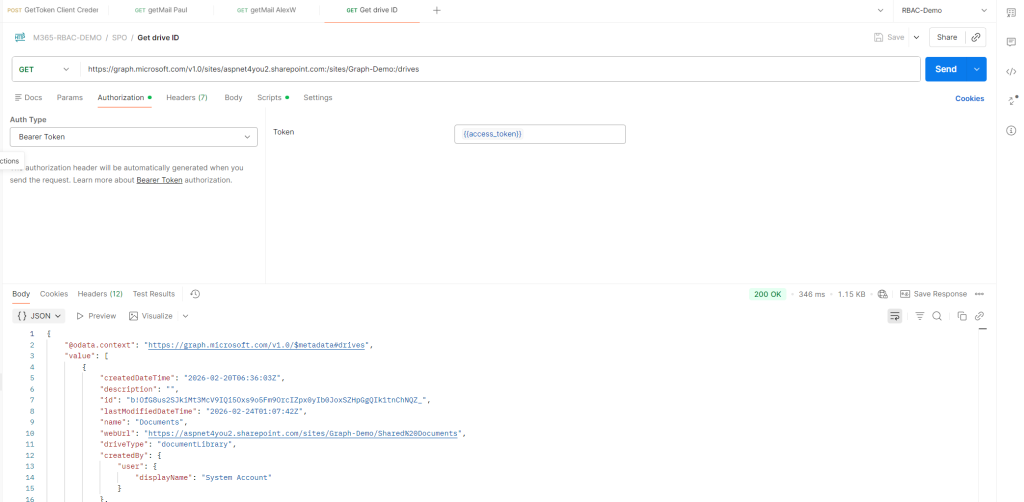

2. Get Drive ID

SPO → Get drive ID

3. Upload Files

Use:

Upload to root folder
Upload to subfolder

Expected result:

✔️ Success — because the app has fullcontrol on Graph‑Demo.

4. Attempt Access to Other Sites

(Not included in the collection, but recommended)

Expected result:

❌ Access Denied — because Sites.Selected restricts access.
